铌酸锂器件
30G Mach-Zehnder Intensity Modulator (MZIM)
应用和特点
应 用
- RF over Fiber
- Chirp-Free Signal Generation
- Antenna Remoting
- Short Pulse Experimentation
- Long-Haul Transmission
特 点
- 30GHz Bandwidth
- LiNbO3 APE Waveguide
- X-Cut, Single Drive, Zero Chirp
- C- Band Operation
- Integrated Photodiode
- RF Connector Type: V Connector

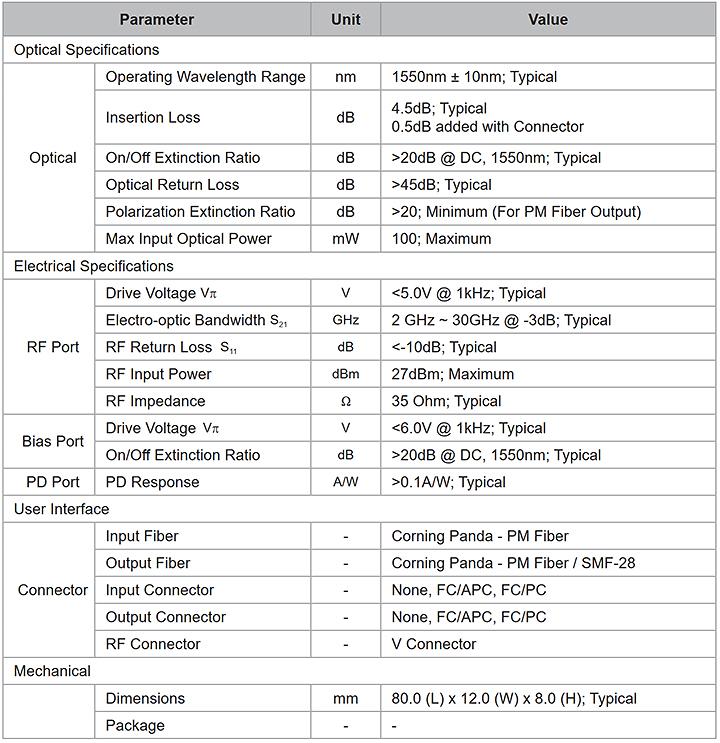

参数规格
可选型号
- MZIM-15-20-0-A-Q, for 20GHz
- MZIM-15-30-0-A-Q, for 30GHz
.

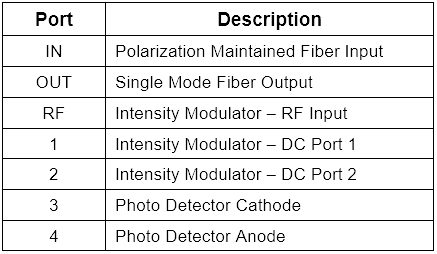

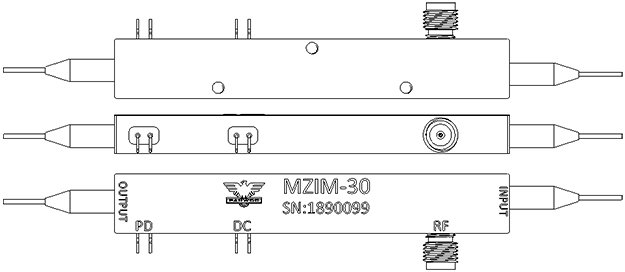

器件外形及管脚定义
图片 & 视频

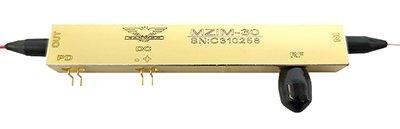

▲ 30G Mach-Zehnder Intensity Modulator (MZIM)
